A tunable narrow‐linewidth Er‐doped fiber ring laser based on tunable fiber Bragg gratings
Citation
P. Liu, F. P. Yan, J. Li, L. Wang, T. R. Gong, and P. L. Tao, "A TUNABLE NARROW-LINEWIDTH Er-DOPED FIBER RING LASER BASED ON TUNABLE FIBER BRAGG GRATINGS," Microwave and Optical Technology Letters, 51, 1005–1010 (2009), doi: 10.1002/mop.24245
Keywords
- Tunable erbium doped fiber ring laser
- Tunable fiber Bragg grating (TFBG)
- Narrow-linewidth
- Optical circulator
- Array waveguide grating (AWG)
- Wavelength tunability
- Strain-induced uniform FBG
- Bragg wavelength
- Axial strain
- Wavelength preselection
- Side-mode suppression ratio (SMSR)
- Wavelength division multiplexing (DWDM)
- Optical communication systems
- Fiber sensor systems
- Optical instrument testing
- Optical signal processing
- 980/1550 nm WDM coupler
- Polarization controller (PC)
- Optical isolator (ISO)
- Erbium doped fiber (EDF)
- Hydrogen loaded G652 fiber
Brief
The article proposes and demonstrates a tunable narrow-linewidth erbium-doped fiber ring laser that utilizes tunable fiber Bragg gratings (TFBGs), achieving a wide tunable range and stable output.
Summary

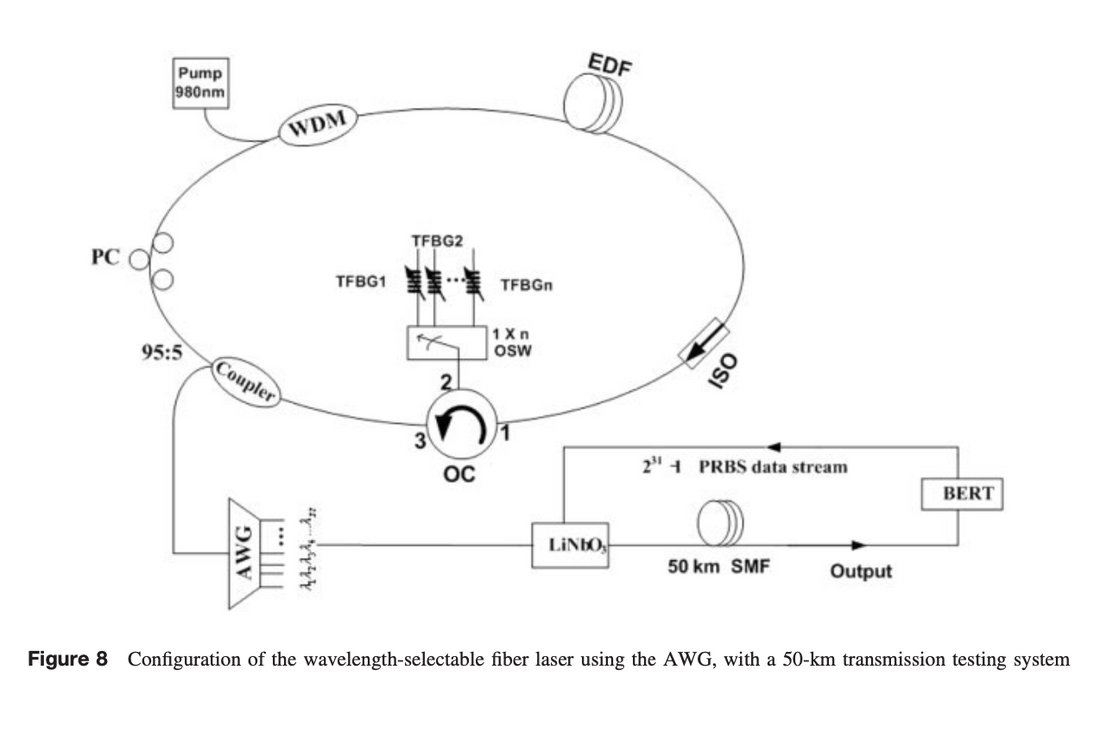

This paper presents a tunable erbium-doped fiber ring laser that uses a tunable fiber Bragg grating (TFBG) to achieve a narrow linewidth (less than 0.01 nm) and a tunable range of 8 nm in the C band. The TFBG is based on applying strain to a uniform FBG, allowing for wavelength control. The laser also features a side-mode suppression ratio better than 50 dB. Furthermore, the integration of an array waveguide grating (AWG) enables wavelength preselection, and the laser's performance was successfully tested over a 50-km transmission at 10 Gb/s, demonstrating its potential for optical communication applications.
