Optical unit of Laser-Electron X-ray Generator designed for medical applications
Citation
M.V. Gorbunkov, Yu.Ya. Maslova, A.V. Vinogradov, "Optical unit of Laser-Electron X-ray Generator designed for medical applications", Nuclear Instruments and Methods in Physics Research A, 608 (2009), S32–S35, doi:10.1016/j.nima.2009.05.034
Keywords
- X-ray generation
- Solid state laser
- Picosecond pulses
- Feedback control
- Optical circulator
- Laser-Electron X-ray Generator (LEXG)
- Medical applications
- Pulsed laser system
- Master oscillator
- Pulse picking
- Amplifiers
- Passive circulator
- Second harmonic generation (SHG)
- Optoelectronic negative feedback
- Pockels cell
- TaLiO3 crystal
- DKDP crystal
- Burst mode
- Shear acoustic vibration
- LBO crystal
- High-finesse resonator
Brief
The article proposes a design for the optical unit of a pulsed Laser-Electron X-ray Generator for medical applications, focusing on a passive optical circulator based on second harmonic generation and a picosecond laser system with controlled output time structure.
Summary

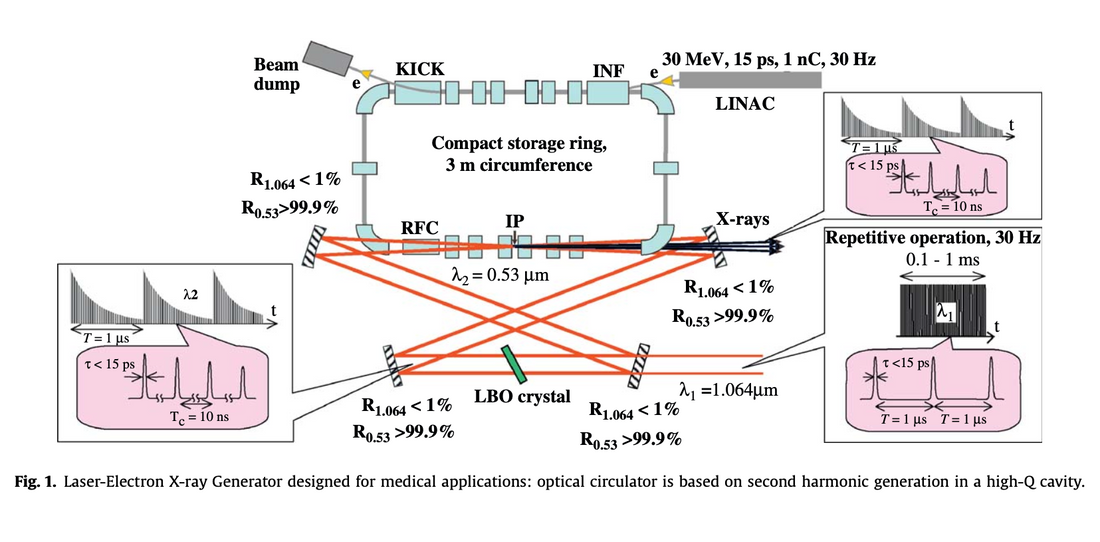

This article presents a design for the optical part of a Laser-Electron X-ray Generator for medical uses. It focuses on a passive optical circulator based on second harmonic generation and a picosecond laser system that can produce specific patterns of laser pulses (bursts). Two methods for generating these bursts using optoelectronic feedback with either a TaLiO3 or a DKDP crystal Pockels cell are proposed and tested. The DKDP crystal method allows for bursts with periods determined by the crystal's acoustic vibration modes.
Origin: https://sci.bban.top/pdf/10.1016/j.nima.2009.05.034.pdf#
