玻璃毛细管阵列 (GCA)

玻璃毛细管阵列 (GCA)

$1,580.00 USD
$1,580.00 USD
促销 售罄
Hole Diameter(um) \ Plate Dimension(mm) \ Thickness(mm) \ OAR \ QTY
玻璃毛细管阵列 (CA) 是一种由数百万根中空纤维融合在一起形成均匀而结构坚固的的产品。这些管子或毛细管直径极小，可用于过滤、准直、分束和多路复用分析等多种用途。玻璃毛细管阵列可以根据应用制成不同的形状、尺寸、材料和表面处理。它们具有高耐热性、强机械性、高光学质量和化学稳定性。
查看完整详细信息

Glass Capillary Array Section View

Specification

  • Capillary Diameter

    Hole diameter is the diameter of each Single Capillary (hole).

    • Typical Value: 4um,6um,25um,100um
    • Min Value: 1um
    • Max Value: 200um

    The hole diameter influences the sample volume, the electric field strength, and the heat dissipation.

  • Length to Diameter Ratio (L/D)

    L/D ratio in capillary array is the ratio of the length to the diameter of the capillaries.

    • Typical Value: 50 - 200
    • Max Value: 600

    A longer and thinner capillary may require more sophisticated fabrication techniques and materials, which can increase the production cost and complexity

  • Format Available

    Single Capillary (Hole) Shape

    • Circular
    • Rectangle

    Array Shape Available:

    • Circular
    • Rectangle

    Array Dimension

    • Typical: dia25mm - dia50mm
    • Max: dia200mm
    • Min: dia6mm

  • Open Area Ratio (OAR)

    OAR ratio is the open area ratio of a capillary array, which is defined as the ratio of the cross-sectional area of the capillaries to the total area of the array.

    • Typical Range: 50% - 65%
    • High Range: 70% - 80%

  • Material & Fabrication

    • Material: Borosilicate Glass
    • Heat Resistance: up to 500°C
    • Lead Free: Optional
      (Hole shape and uniformity may vary depends on materials)
    • Surface Coating Available: Ni-CR, ITO
    • Interal Coating(on wall): ITO, TiO2

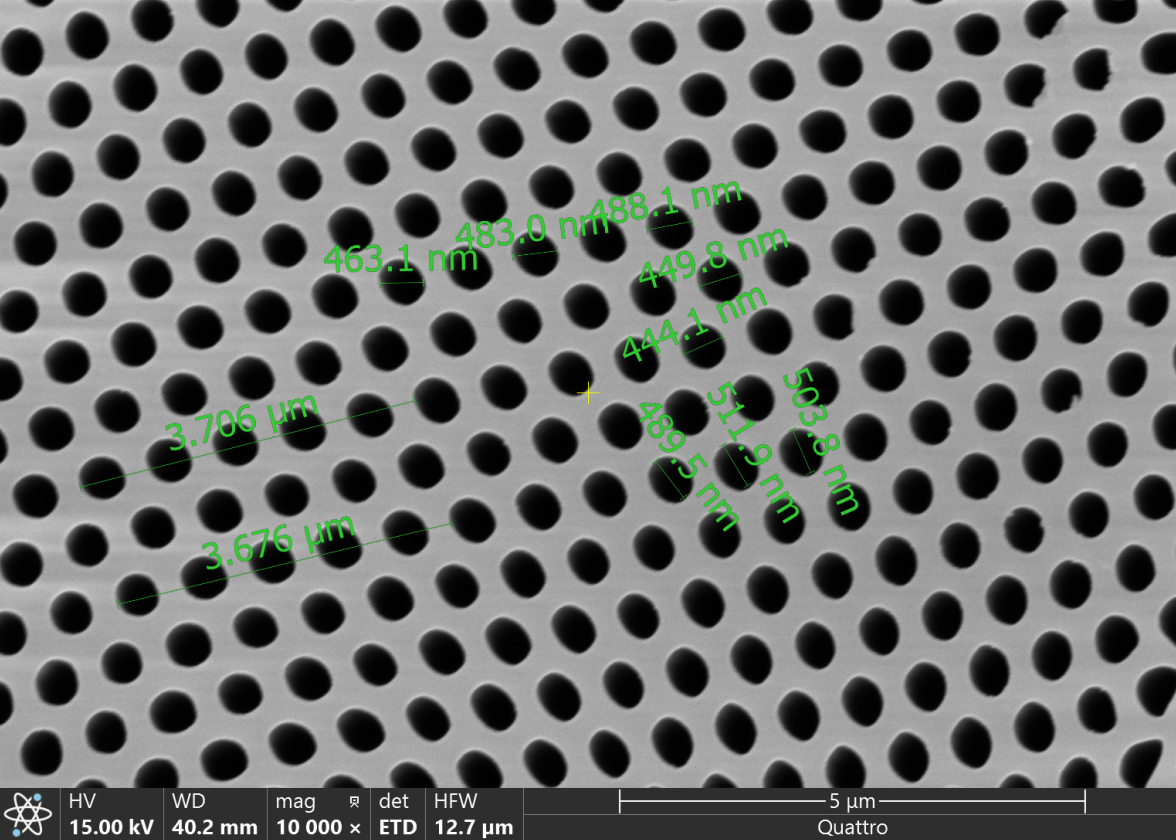

A Zoom-In Look on the GCA

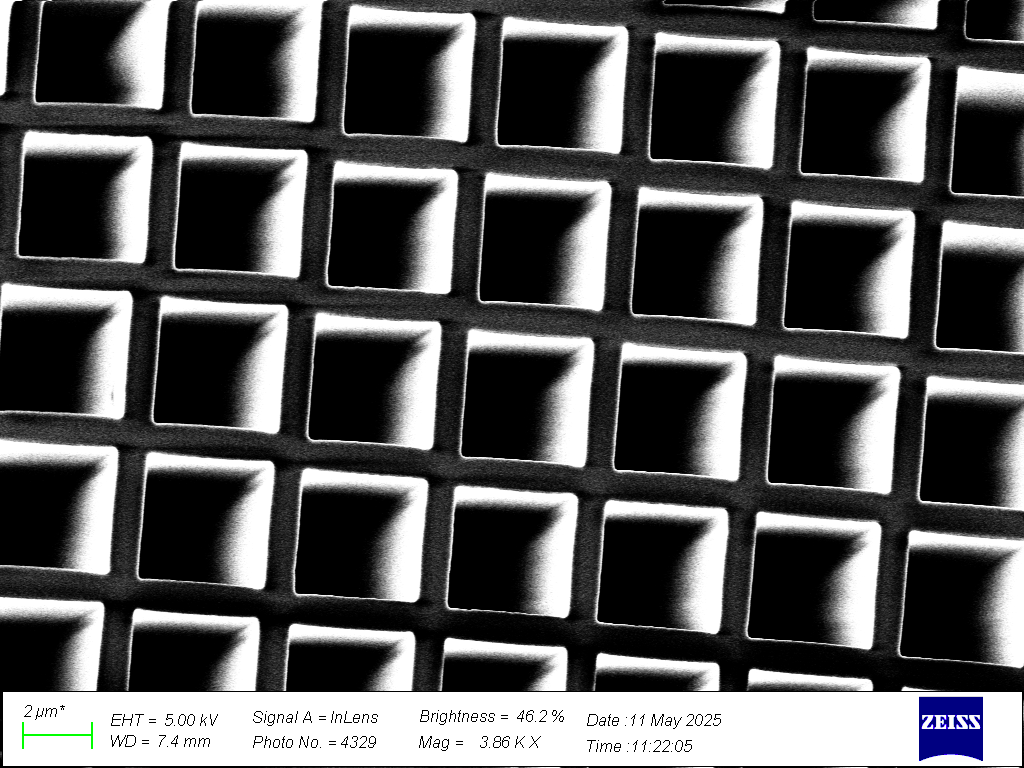

  • 750x Magnificaiton

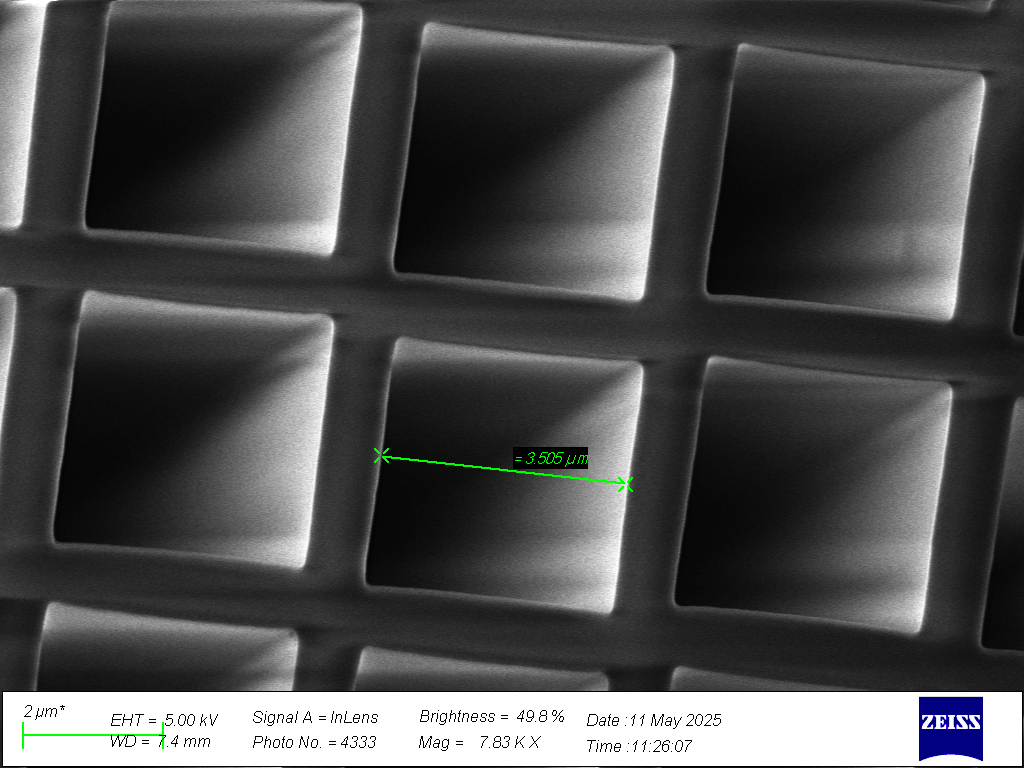

  • 1500x Magnificaiton + Measurement

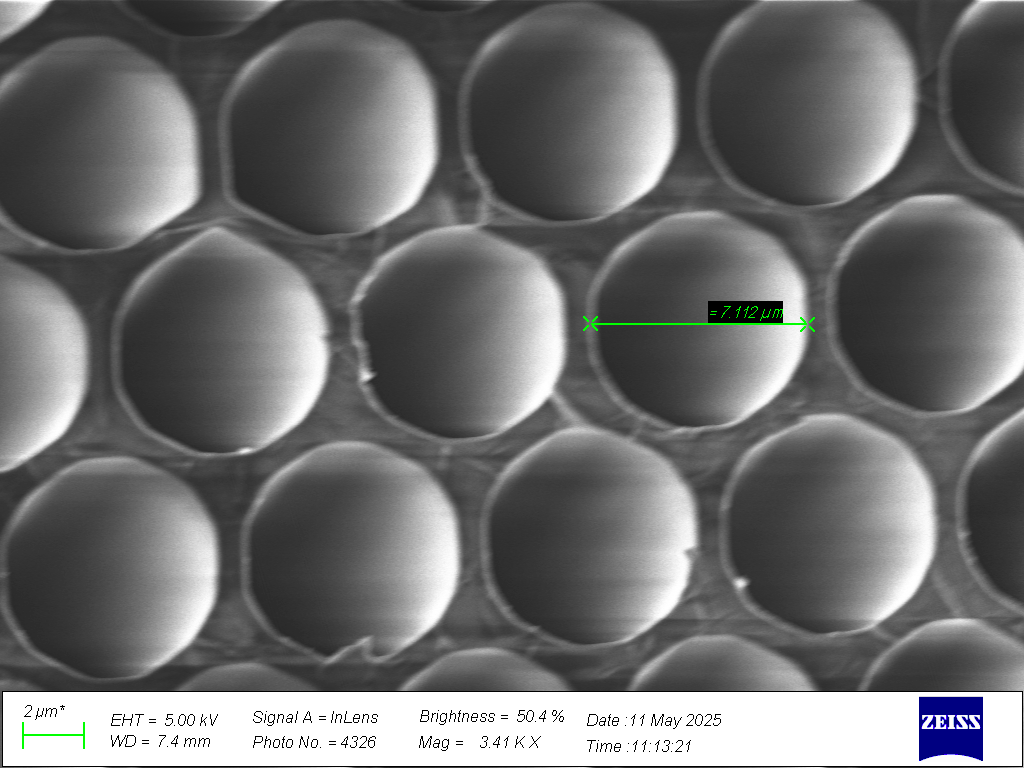

  • 3000x Magnificaiton

  • 3750x Magnificaiton
