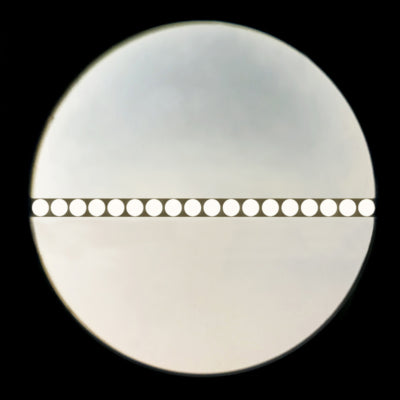

1d 파이버 어레이(1dFA)

Channels: 8
Pitch: 127 µm
Fiber type: SMF 9/125
Substrate: Silicon V-groove
Lid: Glass
Fiber length: 1 m
Connector: FC/APC
FA size: 2.5 × 2.0 × 0.8 mm
Fiber exposure: 10 µm
Pitch tolerance: ±0.5 µm

Single Mode (SM) Fibers

• SM405 @ 400-550nm (NA0.12)
• SM450 @ 450-600nm (NA0.12)
• SM630 @ 600-770nm (NA0.12)
• SM780 @ 780-970nm (NA0.12)

Other

Multi Mode (MM) Fibers

• Low-OH Silica @ 400-2200nm (NA0.22)
• High-OH Silica @ 200-1200nm (NA0.22)
• Glass Core @ 400-1700nm (NA0.64)

Polarization Maintaining (PM) Fibers

• PM460 @ 460-550nm
• PM630 @ 630-780nm
• PM780 @ 780-970nm
• PM980 @ 980-1600nm

Ohter

A fiber channel simply means one optical fiber path capable of carrying light independently.

Maximum Fiber Count : 512 (dia60μm Glass Core Fiber)

Fiber pitch refers to the exact center-to-center distance between adjacent optical fibers within the array.

Fiber Array Substrate:

• Fused silica
• Borosilicate Glass
• Metal
• Ceramic

Fiber Array Size:

• Height: total thickness of the FA
• Width: width across fiber direction
• Length: length along fiber direction





The connector side be made with either of below format:

Standard Connectors

• FC
• SMA
• MPO

Bare Fibers

Custom Connector / Ferrules

Fiber length refers to the length of fiber extending from the fiber array block to the termination or open end.

Pitch accuracy: ±0.5 µm
Core position: ±0.5 µm
Angular error <0.1°
