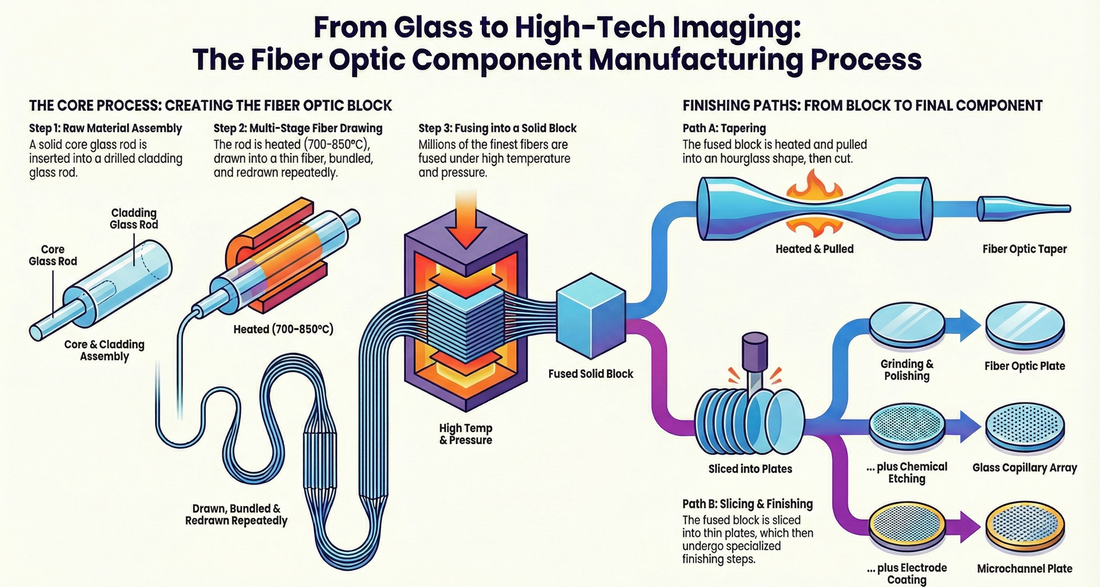

Manufacturing of Imaging Fiber Optic Components

Introduction: From Glass to Fiber Optic Components

Four key imaging components the Fiber Optic Plate, Fiber Optic Taper, Glass Capillary Array, and Microchannel Plate are fundamental to a wide array of advanced technologies, from medical endoscopes to night vision systems. While each component has a distinct form and function, they all begin their creation through a shared, foundational manufacturing process. They originate from the same basic principles of drawing and fusing glass fibers before branching into specialized finishing paths. This article will clearly explain this entire manufacturing journey, from raw glass to finished high-performance optical component.

--------------------------------------------------------------------------------

1. The Common Foundation: Crafting the Fiber Optic Block

The strategic importance of the initial manufacturing stages cannot be overstated. These foundational steps material preparation, multi-stage fiber drawing, and fusing are common to all four components and are absolutely critical for establishing the final product's core optical properties and performance. The meticulous execution of this shared process results in a solid, semi-finished block of fused optical fibers, which serves as the starting point for all subsequent specialization.

1.1. Step 1: Raw Material Preparation

The journey begins with the careful selection and preparation of raw glass materials. The specific combination of glasses used at this stage dictates the final optical characteristics of the component.

• Core Material Bar: This is the primary light-transmitting glass in the fiber. For Microchannel Plates and Glass Capillary Arrays, this bar is made of a special glass specifically designed to be dissolved by acid in a later step.
• Cladding Material Bar: This bar of glass has a lower refractive index than the core. A hole is drilled into it, and the core bar is inserted inside, creating the initial raw glass block, or "rod," for the drawing process.
• EMA Glass Bar: EMA (Extra-Mural Absorption) glass is a specialized, light-absorbing material. It is only required for the manufacturing of Fiber Optic Plates and Tapers to prevent optical crosstalk (light leakage between adjacent fibers), which significantly enhances image contrast and resolution.

The critical outcome of this stage is that key optical specifications, such as Numerical Aperture and Internal Transmittance, are fundamentally determined by the choice and combination of these core and cladding materials.

1.2. Step 2: The Multi-Stage Fiber Drawing Process

The raw glass rod is repeatedly heated and drawn down through a vertical furnace, or "drawing tower," to create progressively thinner fibers. This iterative reduction is an essential engineering control; it allows us to achieve microscopic fiber dimensions down to 4μm without compromising the structural integrity of the glass.

• Mono Fiber Drawing:
  • The initial glass rod is fed into a drawing tower and heated to between 700-850°C.
  • This heat melts the rod, allowing it to be drawn under precisely controlled temperature and tension into a thin filament called a "monofiber," which is approximately 2mm in diameter.


  • These monofibers are collected and carefully bundled together in a hexagonal layout. If EMA is required, the light-absorbing glass bars are inserted between the monofibers during this bundling step.

• Multi Fiber Drawing:
  • The bundle of monofibers is sent back to the drawing tower.
  • This entire bundle is heated and drawn again to create a "multifiber" filament. This filament is about 1mm in diameter but now contains hundreds of the original monofiber elements.
  • These multifibers are then collected and bundled together once more.
• Multi-Multi Fiber Drawing:
  • The bundle of multifibers undergoes a final drawing process.
  • The result is a "multi-multi fiber," where the smallest individual fiber element size has been reduced to an incredibly fine 4-10μm.

1.3. Step 3: Fusing into a Solid Block

The final step in this foundational phase is to transform the loose bundles of multi-multi fibers into a single, solid, workable block. This is achieved through a highly sophisticated, computer-controlled fusing process. The collected multi-multi fibers are meticulously aligned within a hexagonal fixture, which is then placed into a specialized fusion press. The press allows for independent pressing from the sides, top, and bottom, subjecting the block to a precisely controlled temperature cycle and a maximum glass loading pressure of 5000 pounds per square inch (PSI).

This process bonds the millions of individual fibers together, creating a solid block. This semi-finished product is referred to as a Fiber Optic Block or Boule. Proper control of temperature and pressure during this stage is critical to minimize material defects such as shear distortion or blemishes. This Boule is the crucial starting point from which the specialized finishing paths diverge to create the final, distinct products.

--------------------------------------------------------------------------------

2. Specialized Paths: Creating the Final Components

After the creation of the fused Fiber Optic Block, the manufacturing process diverges into unique paths to produce each specific component. The subsequent steps of shaping, cutting, etching, and finishing are what define the final product's geometry and application-specific function. The following sections detail these distinct finishing processes.

2.1. Path A: Fiber Optic Taper

To transform a Fiber Optic Block into a Fiber Optic Taper a component that magnifies or minifies an image.

• Tapering: The Boule is placed in a special furnace that precisely heats and stretches it using a matched set of coils. A controlled pulling force is simultaneously applied from both ends, stretching the block in the middle to create a distinctive "hourglass" shape.
• Cutting: The hourglass-shaped piece is precisely cut at its narrowest point in the middle, a process that yields two separate tapers from the original block.
• Final Finish: The tapers undergo Grinding & Polishing. A double-side polishing machine is used to finish the input and output faces to the desired surface quality and flatness. This step completes the product.

2.2. Path B: Fiber Optic Plates, Capillary Arrays, and Microchannel Plates

The remaining three components Fiber Optic Plates, Glass Capillary Arrays, and Microchannel Plates share an initial shaping step before their manufacturing paths diverge once more.

• Initial Step - Slicing: The solid Fiber Optic Block is cut into many thin plates or wafers. This is often done using inside diameter (ID) saws with diamond-coated blades to ensure precision and minimize material loss, producing plates as thin as 0.3mm.
• Unique Cut for MCPs: For Microchannel Plates, a critical modification is made during this step. The block is sliced at a specific angle, a critical feature that ensures cascading electron collisions for signal amplification in the final device.

From this point, each sliced plate follows a specific finishing sequence.

2.2.1. Finished Product: Fiber Optic Plate

The manufacturing process for a Fiber Optic Plate is the most direct of this group.

• After the Slicing step, the product simply undergoes Grinding & Polishing to achieve its final thickness, form, and required surface quality.

2.2.2. Finished Product: Glass Capillary Array

The Glass Capillary Array requires an additional chemical process to create its unique porous structure.

1. Grinding & Polishing: The sliced plate is first polished to the desired surface quality.
2. Chemical Etching: The polished plate is then subjected to an acid etch. This chemical process dissolves and completely removes the acid-soluble core material from each fiber, leaving behind an array of millions of tiny, hollow channels or pores. This completes the product.

2.2.3. Finished Product: Microchannel Plate (MCP)

The Microchannel Plate undergoes the most complex finishing sequence, involving chemical etching and the addition of electrical components.

1. Grinding & Polishing: The plate, which was cut at an angle during the Slicing phase, is polished.
2. Chemical Etching: As with the Capillary Array, the acid-dissolvable core glass is removed to create the pores or channels.
3. Electrode Coating: In the final manufacturing step, a conductive electrode is coated onto both the input and output sides of the plate, allowing it to function as an electron multiplier.
