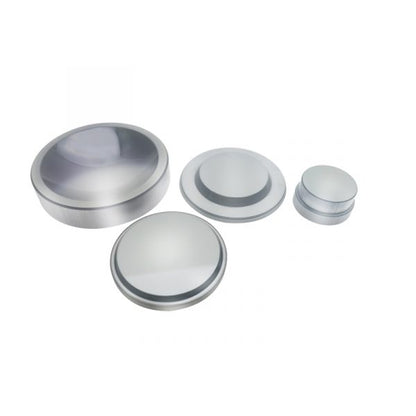

표준광섬유판(sFOP)

표준광섬유판(sFOP)

$75.00 USD
$75.00 USD
할인 품절
크기(mm) \ 두께(mm) \ 섬유직경(um) \ NA \ 모양

광섬유판(FOP)은 한쪽에서 다른 쪽으로 이미지를 전달하는 릴레이 구성 요소로 사용될 수 있습니다.

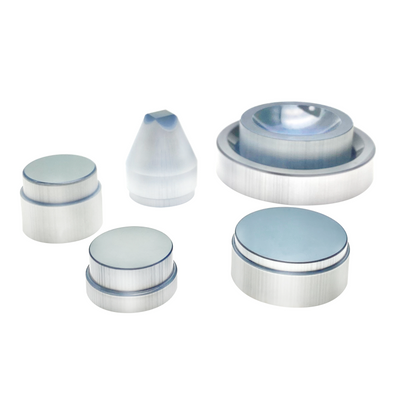

FOP의 표면은 오목형, 볼록형, 계단형, 평면형 등 다양한 모양으로 만들 수 있어 다양한 장치와 시스템에 결합하기가 더 쉽습니다(예: 동심원형 카메라).
FOP는 입력 및 출력 공간을 분리하는 광 분리기 역할도 할 수 있습니다. 또한 광섬유 간의 광 혼선을 흡수할 수 있습니다.

*각 유형마다 최소 주문 수량이 적용될 수 있습니다.

    전체 세부 정보 보기

    Specifications

    • Single Fiber diameter

      Smaller fiber size means higher resolution. (2.5um = 218lp/mm , 6um = 114um )

      • 2.5um
      • 3um
      • 4um
      • 6um

    • Maximum Size (Diagonal)

      Production cost will increase sharply once diagonal surpass 130mm. If you need a bigger size, please contact us.

      • Max. size Φ200mm

    • Thickness

      With a larger size of FOP, the minimum thickness required will also go up in order to maintain the structure. Usually thickness will go around 1mm - 3mm.

      • Minimum 0.2mm

    • EMA Absorber

      EMA are special fibers insert in-between the standard fibers. They are using to absorb stray light between fibers. But at a cost of lowering the overall transmission.

      • Interstitial EMA (Left)
      • Without EMA (Right)

    • Numerical Aperture

      Numerical Aperture are decided by the material using to produce the FOP.

      • NA = 1.0 (LEFT)
      • NA = 0.8 (RIGHT)

    • Transmission

      sFOP are produced from multi-component glass. Which has the highest transmission in VIS to NIR range.

      Tested a sFOP of 3mm thickness, with EMA absorber, collimated light.

      • 70% - 82% (400nm - 2500nm)
      Transmission Curve

    • Resolution of 4µm FOP Sample

      143lp/mm

    • Resolution of 6µm FOP Sample

      90lp/mm

    • Fiber Optic Plate with Concave Surface

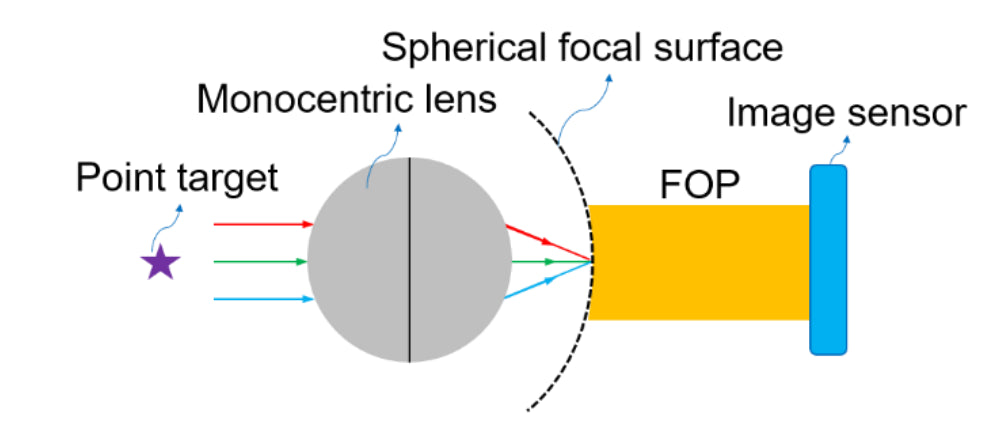

    • Concentric / Monocentric Camera

      • The FOP is used to couple this spherical focal surface to a flat image sensor.
      • The FOP acts as an interface between the curved focal surface and the flat image sensor.
      • It has a spherical input surface matching the focal surface curvature and a flat output surface matching the image sensor.
      • The FOP consists of millions of optical fibers arranged in a hexagonal pattern.
